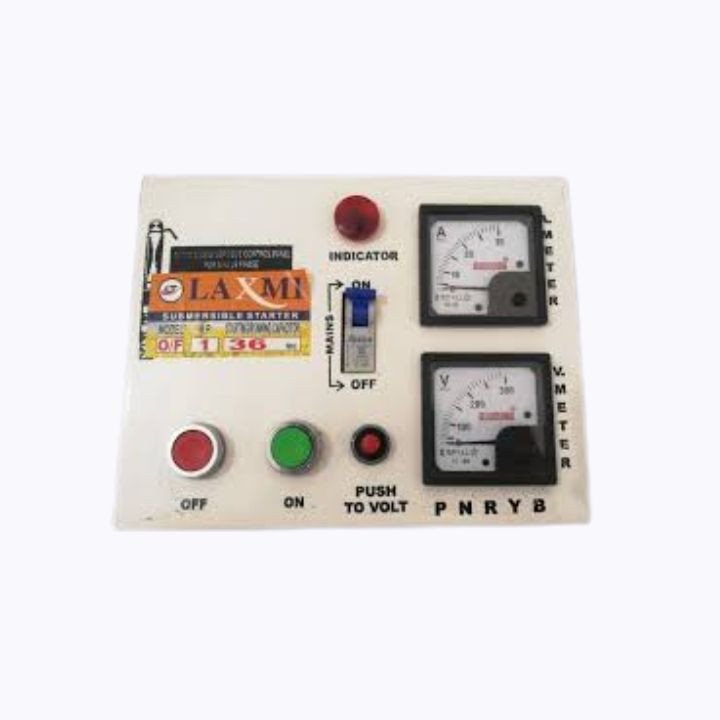

Laxmi 1-Phase Motor Starter (1 HP, Auto-Cut, 240V)
₹2,300 ₹2,800
Save ₹500
Size

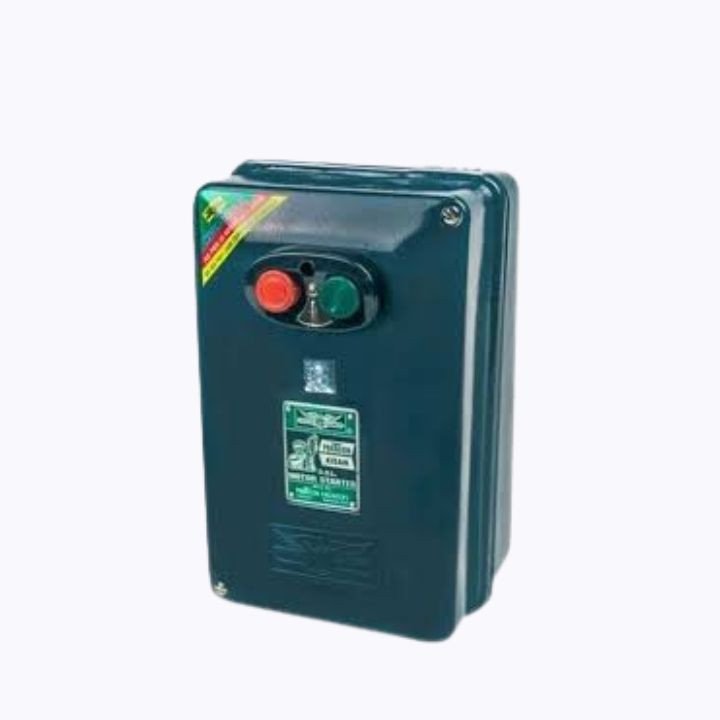

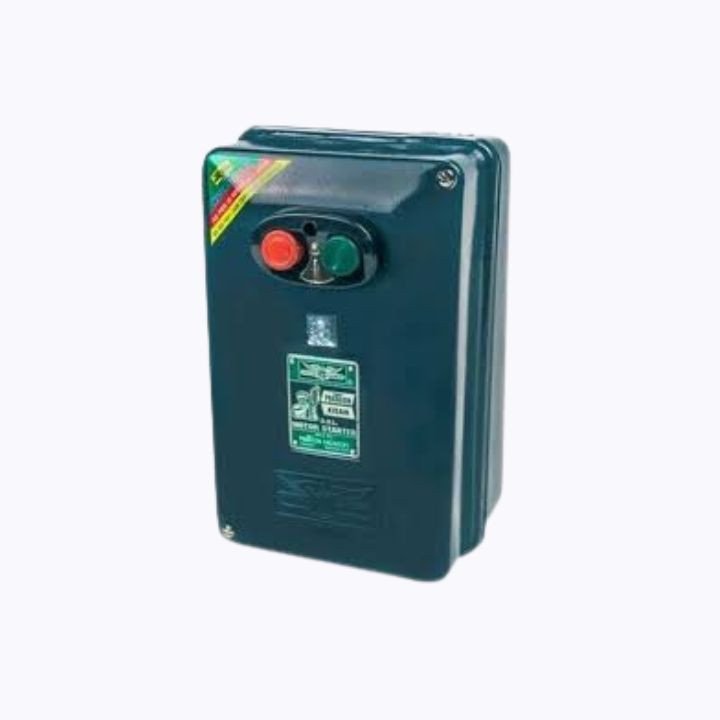

Paragon PE1 DOL Starter (3-Phase Motor) – Heavy Duty, Adjustable Relay

Paragon Starter 20–32 Relay Heavy Duty DOL Type PE1 is a robust Direct-On-Line starter designed for reliable operation of 3-phase motor pumps. It features easy push ON/OFF controls, durable construction, and adjustable relay settings to match a wide range of motor loads—making it ideal for agricultural and industrial applications.

Technical Specifications

Attribute Details
Product Paragon PE1 Heavy Duty DOL Starter
Motor Type 3-Phase Induction Motor / Pump
Starter Type Direct-On-Line (DOL)
Control Push ON / Push OFF buttons
Relay Adjustment Range(s) • 6–10 A   (typically for ~0.5–3 HP*)
• 9–14 A   (typically for ~2–3 HP*)
• 13–22 A (typically for ~3–7.5 HP*)
• 20–32 A (model/variant mentioned in title)
*HP mapping is indicative only; always match to motor nameplate current.
Compatible Motor Power Approx. 0.5 HP to 7.5 HP (as per relay & motor FLC)
Enclosure Heavy-duty body; suitable for field/utility rooms
Use Cases Agriculture pump sets, industrial machinery, general 3-phase motors
Power Supply 3-Phase AC (typ. 415 V, 50 Hz)

Key Features

  • Versatile Relay Settings: Adjustable ranges to suit different motor full-load currents.
  • Simple Operation: Push ON/OFF buttons for quick, reliable control.
  • Heavy-Duty Build: Durable components for long service life.
  • Wide Compatibility: Suits irrigation pumps, compressors, and general 3-phase motors.
  • Stable Performance: Consistent starting and protection for motor windings.

Applications

  • Agriculture: 3-phase pump sets for irrigation.
  • Industrial: Machinery motors requiring DOL starting.
  • Utilities: General-purpose motorized systems.

Installation & Safety Notes

  • Set the relay to match the motor’s nameplate full-load current (FLC).
  • Ensure proper earthing and use suitably rated MCCB/MCB, contactor, and cabling.
  • Installation and commissioning should be done by a qualified electrician.

FAQs

Q1. Kya ye starter 7.5 HP tak ke motors ke liye sahi hai?
A1. Haan, 13–22 A relay range typically ~3–7.5 HP tak suit karta hai. Hamesha motor ke nameplate FLC ke hisaab se relay set karein.

Q2. 20–32 A relay kis case me chahiye hota hai?
A2. Jab motor ka rated current 22 A se upar ho, tab 20–32 A variant consider karein. Exact selection motor FLC par depend karta hai.

Q3. Ye starter kis voltage pe kaam karta hai?
A3. Typical 3-phase 415 V, 50 Hz supply (local standards follow karein).

Q4. Buttons manual hain?
A4. Haan, push ON/OFF manual control diya gaya hai for quick operation.

Q5. Warranty/box contents?
A5. Packaging/warranty brand policy ke mutabik hoti hai—please seller listing/box details check karein.

Disclaimer

Disclaimer: Information is for reference only. Always follow directions on the product label and leaflet.
