0.5 HP Single Phase MCB Heavy Control Panel for Water Filled Submersible Pump
0.5 HP Single Phase MCB Heavy Control Panel is a robust motor starter and protection panel designed for water-filled submersible pumps. It provides safe motor operation by protecting the pump against overload and short-circuit conditions while ensuring smooth starting and reliable performance.

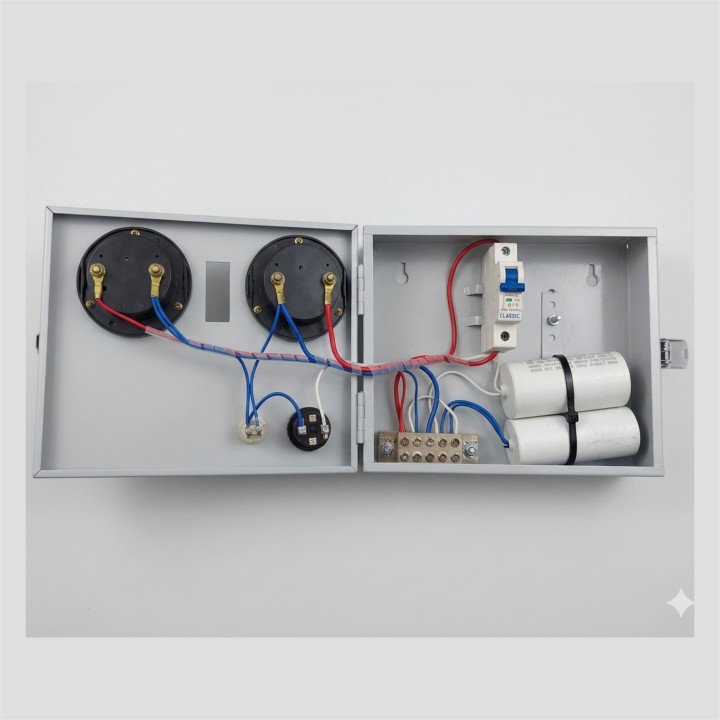

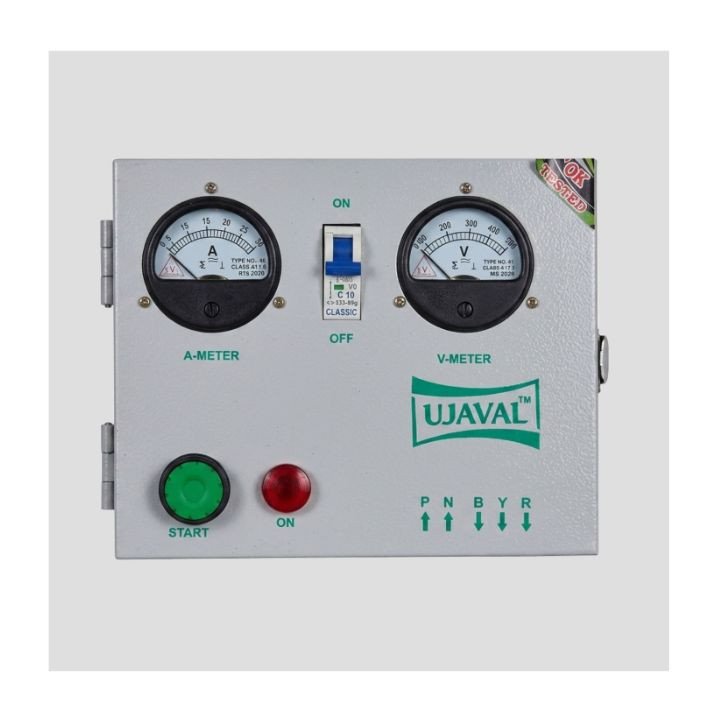

Built with a heavy-duty metal enclosure, the control panel features an ampere meter, volt meter, MCB switch, start button, and power indicator for convenient monitoring and operation. It is suitable for agricultural irrigation, borewell water supply, and domestic water pumping systems. Heavy-duty MCB control panels for 0.5 HP pumps commonly include a 16 A MCB, start and run capacitors, and analog amp/volt meters for reliable motor protection and operation. :contentReference[oaicite:0]{index=0}
Product Specifications
| Product Name |
Single Phase MCB Heavy Control Panel |
| Motor Capacity |
0.5 HP |
| Phase |
Single Phase |
| Type |
MCB Heavy Duty Control Panel |
| Suitable For |
Water Filled Submersible Pumps |
| Body Material |
Heavy-Duty Powder-Coated Metal |
| Protection |
Overload & Short Circuit Protection |
| Display |
Analog Amp Meter & Volt Meter |
Key Features & Benefits
- Suitable for 0.5 HP single-phase water-filled submersible pumps.
- Heavy-duty MCB for overload and short-circuit protection.
- Integrated amp meter and volt meter for real-time monitoring.
- Heavy metal enclosure for durability and long service life.
- Easy ON/OFF operation with dedicated start button.
- Power indicator lamp for operating status.
- Reliable motor starting with capacitor-assisted design.
- Simple installation and low maintenance.
Applications
- Borewell Submersible Pumps
- Agricultural Irrigation Systems
- Farm Water Supply
- Domestic Water Pumping
- Open Field Irrigation
- Garden & Landscape Water Systems
Protection Features
- MCB-based short-circuit protection.
- Motor overload protection.
- Voltage and current monitoring.
- Heavy-duty switching mechanism.
- Safe and reliable pump operation.
How to Use
- Install the control panel according to the motor wiring diagram.
- Connect the incoming power supply and pump cables securely.
- Switch the MCB to the ON position.
- Press the start button to operate the pump.
- Monitor the amp and volt meters during operation for normal performance.
Why Choose This MCB Heavy Control Panel?
- Designed for reliable submersible pump operation.
- Protects the motor from electrical faults.
- Heavy-duty construction for long service life.
- Easy monitoring through analog meters.
- Ideal for agricultural and domestic water pumping applications.
Frequently Asked Questions (FAQs)
Q1. What motor is this control panel suitable for?
It is designed for 0.5 HP single-phase water-filled submersible pumps.
Q2. What protection does the panel provide?
It provides overload and short-circuit protection through an integrated MCB.
Q3. What meters are included?
The panel includes an analog ampere meter and volt meter for monitoring motor performance.
Q4. Can it be used for agricultural irrigation?
Yes, it is suitable for agricultural irrigation, borewell pumps, and domestic water supply systems.
Q5. Is the panel easy to install?
Yes, when installed by a qualified electrician, it offers simple installation and reliable operation.
