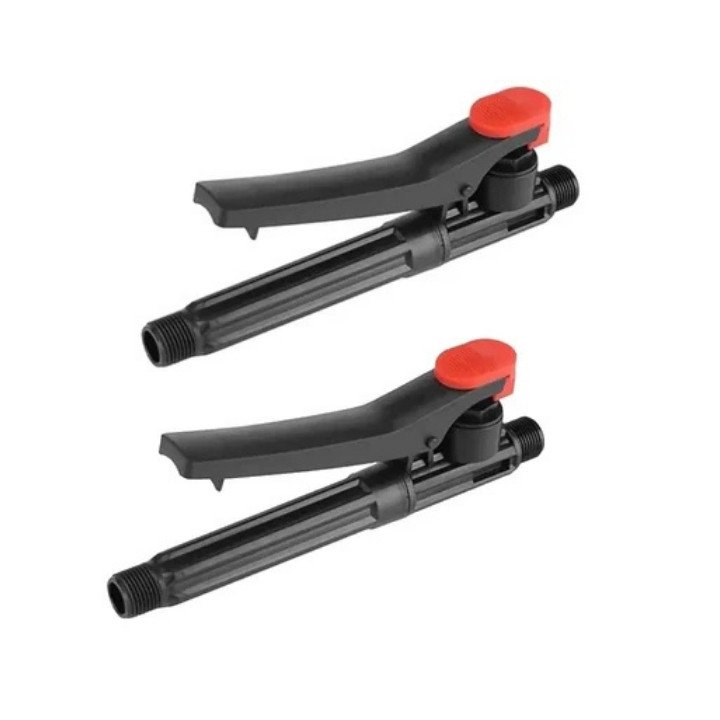

Heavy Duty Trigger/Clutch for Battery and Manual Sprayer Lance

Heavy Duty Trigger/Clutch for Battery and Manual Sprayer Lance

This heavy-duty trigger/clutch is a replacement control component designed for compatible battery and manual agricultural sprayers. It allows the operator to start or stop liquid flow through the sprayer lance by pressing and releasing the trigger.

Made from plastic, the trigger assembly is suitable for replacing a worn, damaged, leaking or difficult-to-operate sprayer handle. The package contains two pieces for convenient maintenance or keeping one unit as a spare.

Sprayer connector sizes and hose fittings can differ between models. Compare the existing part’s inlet, outlet, thread pattern and overall dimensions before ordering.

Sprayer Trigger/Clutch Product Specifications

Package Contents

Package note: Hose, lance pipe, nozzle, washers, clamps and other accessories are not confirmed as included unless shown or stated separately with the selected product.

Key Features

• Pack of Two: Includes two trigger/clutch assemblies for replacement or spare use.
• Spray-Flow Control: Allows the operator to start and stop liquid flow through a compatible lance.
• Plastic Construction: Lightweight and suitable for routine sprayer applications.
• Replacement Component: Helps restore the operation of a worn or damaged sprayer handle.
• Battery-Sprayer Use: Suitable for compatible electrically operated agricultural sprayers.
• Manual-Sprayer Use: Suitable for compatible hand-operated or knapsack sprayers.
• Simple Operation: Trigger-style control supports convenient spraying.

Suitable Applications

• Agricultural crop spraying
• Garden and landscape maintenance
• Application of label-approved pesticides
• Application of foliar fertilizers and plant nutrients
• Targeted pest-control spraying
• Compatible cleaning and sanitation applications
• Replacement of a worn or leaking sprayer-lance handle

Chemical-use note: Confirm that the trigger’s plastic and internal seals are compatible with the intended liquid. Rinse the assembly immediately after spraying corrosive, concentrated or residue-forming products.

Compatibility Checklist

Installation Instructions

1. Switch off the battery sprayer or release all pressure from a manual sprayer.
2. Empty the tank or position the hose to prevent accidental liquid discharge.
3. Remove the old trigger assembly carefully.
4. Inspect the hose, lance, threads, washers and sealing surfaces.
5. Compare the new trigger’s inlet and outlet connections with the old part.
6. Fit the correct washers, clamps or sealing components where required.
7. Connect the delivery hose and lance securely without overtightening plastic threads.
8. Fill the tank with a small amount of clean water.
9. Pressurise or switch on the sprayer and check all joints for leakage.
10. Confirm that the trigger starts and stops flow correctly before adding spray chemicals.

Using with a Battery Sprayer

Before Starting

• Ensure the battery has sufficient charge.
• Inspect the hose, lance, nozzle and trigger for cracks or leaks.
• Confirm that the trigger connections are securely fitted.
• Prepare the spray solution according to the agricultural-input label.
• Wear the required personal protective equipment.

Operating Method

1. Connect the delivery hose and compatible lance securely.
2. Switch on the sprayer motor.
3. Hold the lance firmly and direct the nozzle away from people and animals.
4. Press the trigger to begin spraying.
5. Release the trigger to stop the liquid flow.
6. Maintain a suitable distance and apply the spray uniformly.

Using with a Manual Sprayer

Before Starting

• Read the sprayer and agricultural-input instructions.
• Inspect the tank, hose, trigger, lance and nozzle.
• Fill the tank only to the recommended level.
• Tighten the tank cap securely.
• Wear suitable gloves, footwear, eye protection and other required PPE.

Operating Method

1. Operate the pump handle according to the sprayer manufacturer’s instructions.
2. Build only the recommended tank pressure.
3. Adjust the nozzle to the required spray pattern.
4. Press the trigger to begin spraying.
5. Continue pumping when needed to maintain suitable pressure.
6. Release the trigger before changing position or adjusting the nozzle.

Cleaning After Use

1. Switch off the sprayer and release all remaining pressure.
2. Dispose of leftover spray mixture according to the product-label instructions.
3. Rinse the tank with clean water.
4. Circulate clean water through the hose, trigger, lance and nozzle.
5. Press and release the trigger several times during rinsing.
6. Check that no chemical residue remains around the valve or connections.
7. Drain the equipment and allow it to dry before storage.

Maintenance Tips

• Inspect the trigger regularly for cracks, stiffness and leakage.
• Keep the inlet and outlet connections free from dirt and dried residue.
• Replace damaged washers or O-rings with compatible parts.
• Do not overtighten threaded plastic connections.
• Do not operate the trigger above its confirmed pressure rating.
• Flush the assembly with clean water after every chemical application.
• Store away from direct sunlight, excessive heat and aggressive chemicals.

Safety Precautions

• Wear the protective equipment required by the spray-product label.
• Never point the lance or nozzle towards people, animals or electrical equipment.
• Release pressure before removing the trigger, hose, lance or nozzle.
• Do not use a cracked, leaking or damaged trigger assembly.
• Do not clear a blocked nozzle using the mouth.
• Wash hands and exposed skin thoroughly after spraying.
• Keep the trigger and sprayer equipment out of reach of children.

Frequently Asked Questions

How many trigger clutches are included?

The package contains two trigger/clutch assemblies.

Is it suitable for battery sprayers?

Yes, it is intended for compatible battery sprayers. Check the hose and lance connectors before ordering.

Can it be used with manual sprayers?

Yes, it is intended for compatible manual sprayers, subject to fitting and pressure compatibility.

What material is it made from?

The supplied specification identifies the trigger as a plastic component.

Does it fit every battery or manual sprayer?

Universal fitment is not guaranteed. Connector diameter, thread pattern, pressure and lance design can differ between sprayer models.

Are the lance and nozzle included?

No lance, nozzle or hose is confirmed as included. The listed package contains two trigger/clutch units.

Why does the trigger leak after installation?

Leakage may result from an incorrect fitting, missing washer, damaged O-ring, loose connector, excessive pressure or an incompatible thread.

What is the approximate weight?

The supplied information states an approximate weight of 0.55 kg. Confirm whether this refers to the full packaged product before publishing shipping weight.

What is the country of origin?

The stated country of origin is China.
